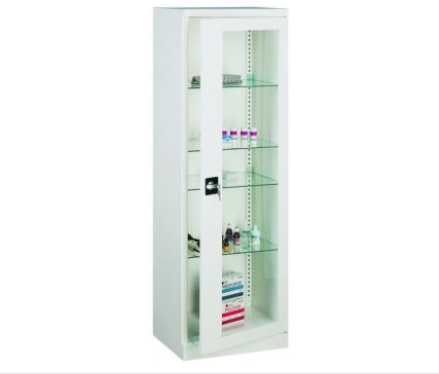

Medicine and inventory cabinets

VVN metal cabinets are ideal for equipping doctor’s offices, pharmacies, laboratories and other medical rooms. Cabinet doors are filled with tempered glass. Glass shelves are adjustable every 25 mm. The door handle is equipped with a lock which secures the doors in two points. Also available wall-mounted/hanging cabinets.

The cabinets are available can be also made of acid-proof steel, at an extra cost. It is possible to order the cabinet on wheels which allow for easy movement. Swivel wheels are antistatic, do not leave scuff marks on the floor, and two are with brakes.


Overall specification

Model number Equipment* Height Width Depth Colour*

VVN CMI1

 4 glass shelves

1800 mm

600 mm

 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005

VVN CMI2

4 glass shelves

1800 mm

 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI3 4 glass shelves 1800 mm 1000 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI4 In the upper part: 2 glass shelves;
In the lower part: 1 glass shelf and lockable compartment without glazed door		 1800 mm 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI5 4 glass shelves;
the cabinet sides are glazed		 1800 mm 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI6 4 glass shelves; equipped with castors 1900 mm 600 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI7 4 glass shelves; equipped with castors 1900 mm 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI8 4 glass shelves; equipped with castors 1900 mm 1000 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI9 Equipped with castors;
In the upper part: 2 glass shelves;
In the lower part: 1 glass shelf and lockable compartment without glazed door		 1900 mm 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI10 4 glass shelves; equipped with castors;
the cabinet sides are glazed		 1900 mm 800 mm 435 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI11 The base: made of square steel profile;
equipped with height-adjustable feet		 140 mm 600/800/1000 mm 434 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI12 Wall-mounted cabinet with two glass shelves and a magnetic lock 500 mm 400 mm 250 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI13 Wall-mounted cabinet with sliding doors and two glass shelves 500 mm 800 mm 250 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005
VVN CMI14 Wall-mounted cabinet with sliding doors and two glass shelves 500 mm 1000 mm 250 mm RAL: 9010, 1015, 7032, 8016, 1023, 2004, 3020, 3005, 6011, 6033, 5018, 7016, 5012, 5010, 7035, 9005

*Available a wide range of cabinets sizes, parameters and assembly options to suit specific needs and application specifics.
